With Quartz controlled fixed frequency UHF technology, these systems reject interference better than any other wireless mic in their class!

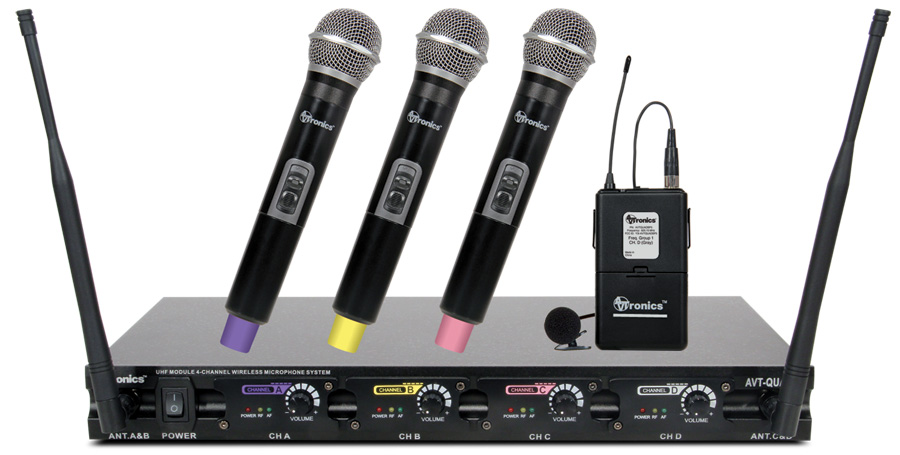

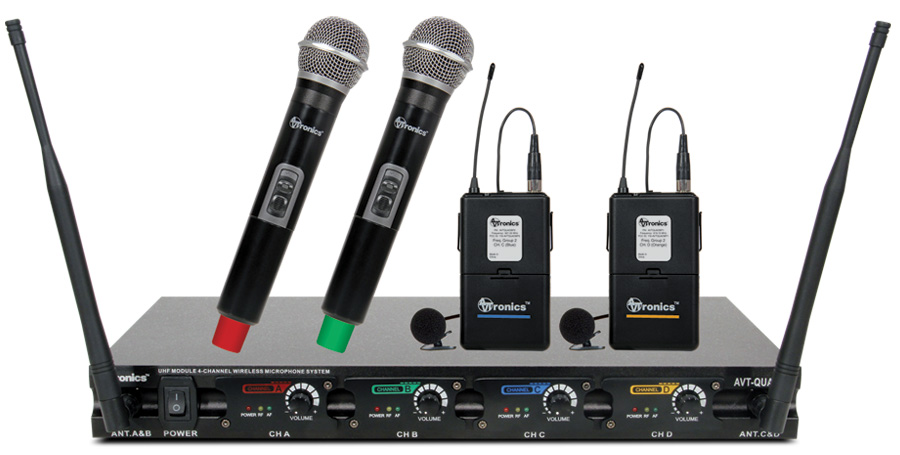

Color coded handheld microphones and receiver channels makes microphone identification simple for those on stage. Never grab the wrong mic again! Your soundman can also clearly see which performer has which mic for sound adjustments making their job even easier. This is a great benefit for churches that have a novice or volunteer sound crew. All transmitters are powered with 2 AA batteries.

Click for larger photos

Technical Specs:

A Band Specifications:

• Use up to 4 wireless microphones at once
• Far reaching working distance: 200 feet
• Reliable sturdy construction
• Operates on 4 single channel fixed frequencies (UHF 600MHz band)
• Transmitter power: 30mW
• Carrier wave stability: 10PPM
• Sensitivity: -105dB @ sinad = 12dB
• S/N Ratio: >105dB (virtually eliminates distortion)
• Great frequency response: 50Hz~18KHz
• 4 individual volume controls
• Max. output level: balanced (0 – 400mv), unbalanced (0 – 200mv)
• Power supply: external DC power supply, 0.8A, 12~18V DC
• Output connectors: 4 XLR balanced, 1 mixed unbalanced ¼” TRS
• Requires 2 AA batteries for each transmitter
• Compact size: 16.5”(L) x 1.8”(H) x 9.8”(D) (approx. dim.)

Lightweight: (approx.) 13.2 lbs

Channel A (Purple): 696.65 MHz
Channel B (Yellow): 693.65 MHz
Channel C (Pink): 631.75 MHz
Channel D (Gray): 625.15 MHz

B Band Specifications

• Use up to 4 wireless microphones at once
• Far reaching working distance: 200 feet
• Reliable sturdy construction
• Operates on 4 single channel fixed frequencies (UHF 600MHz band)
• Transmitter power: 30mW
• Carrier wave stability: 10PPM
• Sensitivity: -105dB @ sinad = 12dB
• S/N Ratio: >105dB (virtually eliminates distortion)
• Great frequency response: 50Hz~18KHz
• 4 individual volume controls
• Max. output level: balanced (0 – 400mv), unbalanced (0 – 200mv)
• Power supply: external DC power supply, 0.8A, 12~18V DC
• Output connectors: 4 XLR balanced, 1 mixed unbalanced ¼” TRS
• Requires 2 AA batteries for each transmitter
• Compact size: 16.5”(L) x 1.8”(H) x 9.8”(D) (approx. dim.)
• Lightweight: (approx.) 13.2 lbs

  Channel A (Red): 697.85 MHz
  Channel B (Green): 680.45 MHz
  Channel C (Blue): 621.55 MHz
  Channel D (Orange): 619.15 MHz

Features:

• UHF 600MHz band
• Quartz Controlled Fixed Frequency

• S/N ratio: >105db
• Frequency response: 50Hz ~ 18KHz
• Working distance: 200 feet
• Handheld Mic Type: Dynamic Cardioid
• Squelch control
• Power supply: External DC power supply
• Output connector: (4) XLR and (1) 1/4" mix output
• Rack mountable
• Weight: 13.2 lbs
